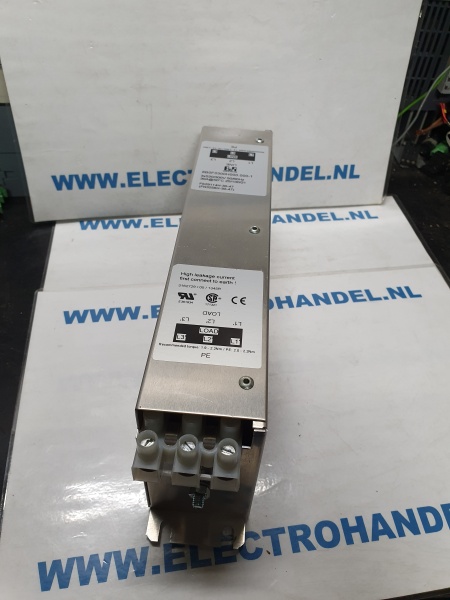

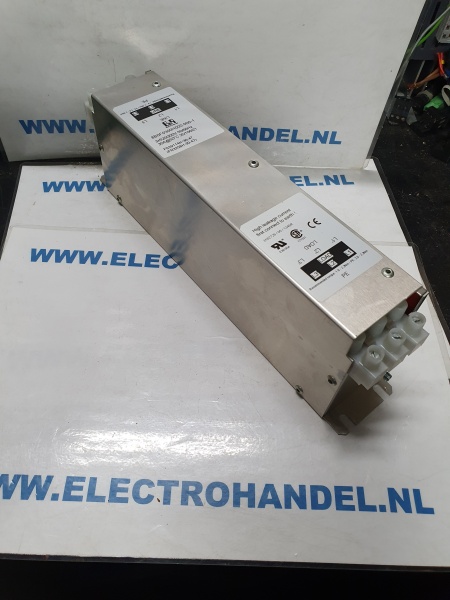

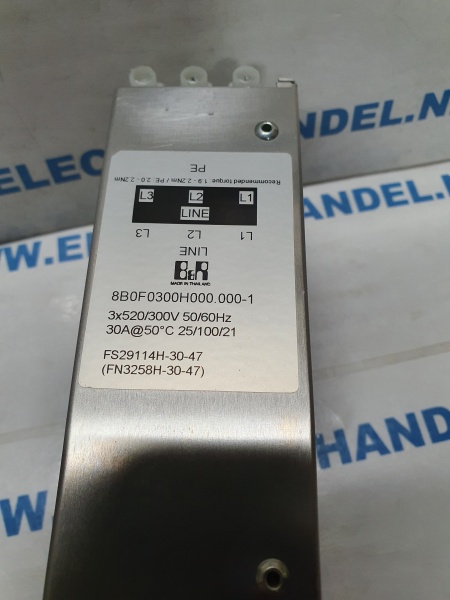

B&R 8B0F0300H000.000-1 30A 3X 300/500V 50/60Hz
Te koop:
General information
| Cooling and mounting type | Wall mounting |
| Certifications | |
| CE | Yes |
| UL | cULus E225616 Power conversion equipment |
| EAC | Yes |
| KC | Yes |
Mains connection
| Permissible network configurations | TT, TN |
| Mains input voltage | Max. 3x 520 VAC ±10% |
| Frequency | 0 to 60 Hz |
| Continuous current | 30 Aeff |
| Peak current | 45 Aeff (<1 min), 1x/h |
| Reduction of continuous current at ambient temperatures starting at 40°C | In preparation |
| Reduction of continuous current depending on installation elevation | |
| Starting at 1000 m above sea level | 1.5 Aeff per 1000 m |
| Power dissipation | 11.8 W |
| Line filter per EN 61800-3, category C3 | Yes |
| Variant | |

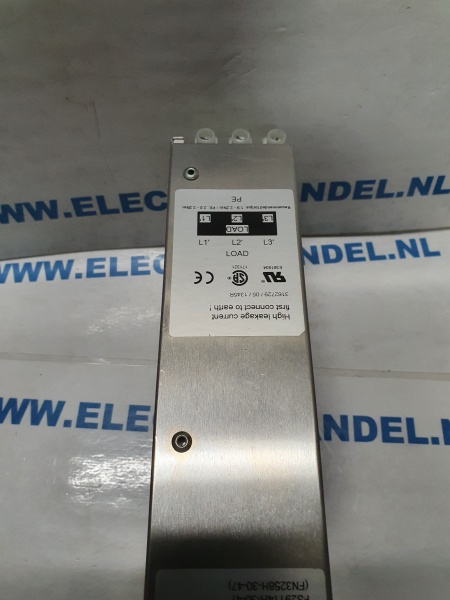

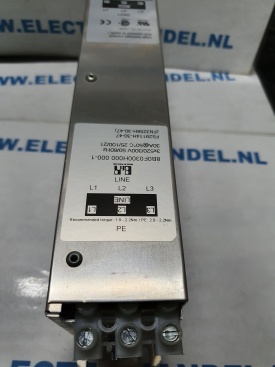

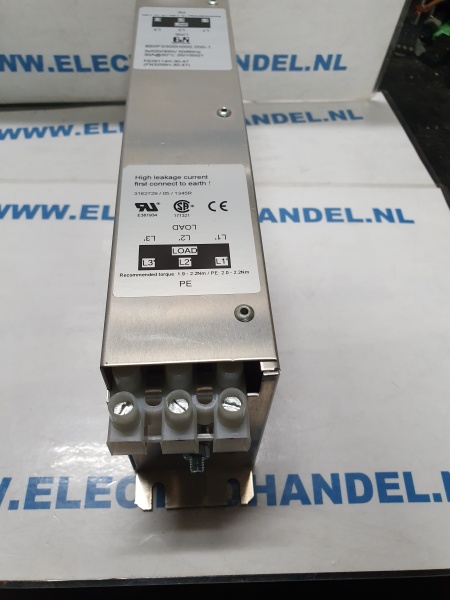

| L1, L2, L3 and L1´, L2´, L3´ | Terminals |
| PE | M5 threaded bolt |
| Shield connection | |
| On mains | No |
| On device | No |
| Terminal connection cross section | |
| Flexible and fine-stranded wires | |
| With wire end sleeves | Max. 10 mm² |
| Approbation data | |
| UL/C-UL-US | AWG 8 |
| CSA | AWG 8 |
Electrical properties
| Discharge capacitance | 0.4 µF |
| Leakage current | 33 mA |
Operating conditions
| Permissible mounting orientations | |
| Hanging vertically | Yes |
| Horizontal, face up | Yes |
| Standing horizontally | No |
| Installation elevation above sea level | |
| Nominal | 0 to 1000 m |
| Maximum | 4000 m |
| Pollution degree per EN 61800-5-1 | In preparation |
| Overvoltage category per IEC 60950 | II |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature | |
| Operation | |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Storage | -25 to 55°C |
| Transport | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 85% |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions | |
| Width | 50 mm |
| Height | 270 mm |
| Depth | 85 mm |
| Weight | 1.2 kg |
Bijzonderheden:
Het sinus filter is gebruikt.
Voor meer informatie klik op de pdf link hieronder.
files/8B0F0300H000_000-1_en_V1_6.pdf
Voor vragen kunt u altijd contact met ons opnemen, of vrijblijvend bij ons langs komen in Sneek.
Er liggen veel meer materialen in ons magazijn die niet allemaal op de web-site staan.
